Kit chaîne JT/JT 520X1R3 14/40 standard – couronne standard

Chain kit consisting of:

standard sprocket

standard rear sprocket

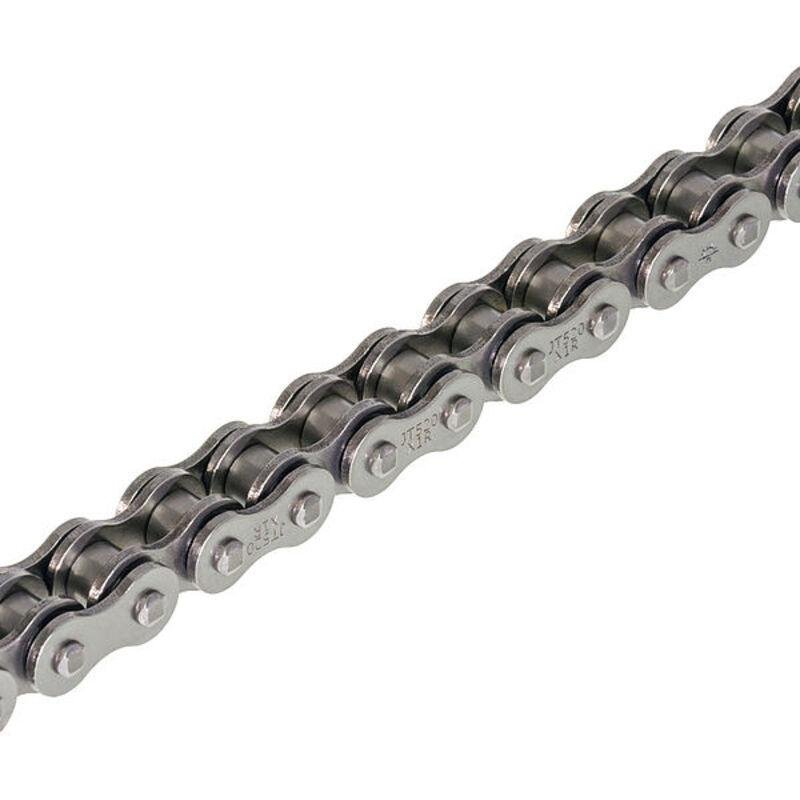

JT 520X1R3 chain

Discover the JT 520X1R3 motorcycle chain – top performance for on and off the road!

The JT 520X1R3 motorcycle chain is the ideal choice for demanding drivers. With its durable construction, precision and excellent tensile strength, it offers a perfect blend of efficiency and reliability. Whether on the road, off-road or on the racetrack – this chain is ready to take on any challenge.

Technical highlights of the JT 520X1R3:

• Reinforced construction: High-quality materials provide exceptional strength and abrasion resistance.
• Solid bushings: For maximum durability and reduced wear at high loads.
• High tensile strength: With a tensile strength of 4,050 kg (39.7 kN), the 520X1R3 is also suitable for extreme applications.
• X-Ring-Seal: Specially developed seals reduce friction and extend service life by effectively protecting against dirt and dust.
• Efficient design: Light and strong, for optimal power transmission and performance.

Ideal for the following motorcycles:

• Street bikes: Up to 800 cc and 120 hp (90 kW)
• Motocross bikes: From 200 to 600 cc
• ATVs: From 200 to 600 cc

Other models and recommended applications:

• 530 X1R: For road motorcycles up to 900 cc and 130 hp (97 kW).
• 525 X1R3: For road motorcycles up to 900 cc and 130 hp (97 kW).
• 520 X1R: For motocross bikes from 200 to 600 ccm.
• 428 X1R: For street motorcycles up to 250 cc, motocross bikes up to 200 cc and ATVs up to 200 cc.

Technical data of the JT 520X1R3 motorbike chain:

• Chain type: 520X1R3
• Roller diameter: 10.22 mm
• Pin length (inner): 20.30 mm
• Plate thickness (inner): 2.2 mm
• Plate thickness (outer): 2.0 mm
• Weight per 100 links: 1.73 kg
• Tensile strength (max.): 4,050 kg (39.7 kN)
• Bolt riveting: 4-fold
• Solid bushing insert: Yes
• Seal: X-ring
• Available connection type: DL (riveted closure), RL/SL (clip closure)

Why JT 520X1R3?

For years, JT chains have stood for the highest quality and precision. With the 520X1R3, you get a product that offers the perfect balance between durability and performance. Whether you’re going on an off-road adventure, a long tour or tackling a race track, this chain won’t let you down.

Rely on JT – for uncompromising reliability.

Get the JT 520X1R3 now and experience the perfect combination of technology and performance.

Caractéristiques

• Matériau de la couronne : Acier
• Version couronne : Standard
• Version pignon : Standard
• Couleur chaîne de transmission : Acier/Acier
• Qualité de la chaîne de transmission : Standard
• Pas de chaîne de transmission : 520
• Type de joints : Sans joints
• Type de chaine JT : X1R3
